Beast RC 32cc 5-Port High-Performance 2-Stroke Engine with 1197 Carburetor (20,000+ RPM)

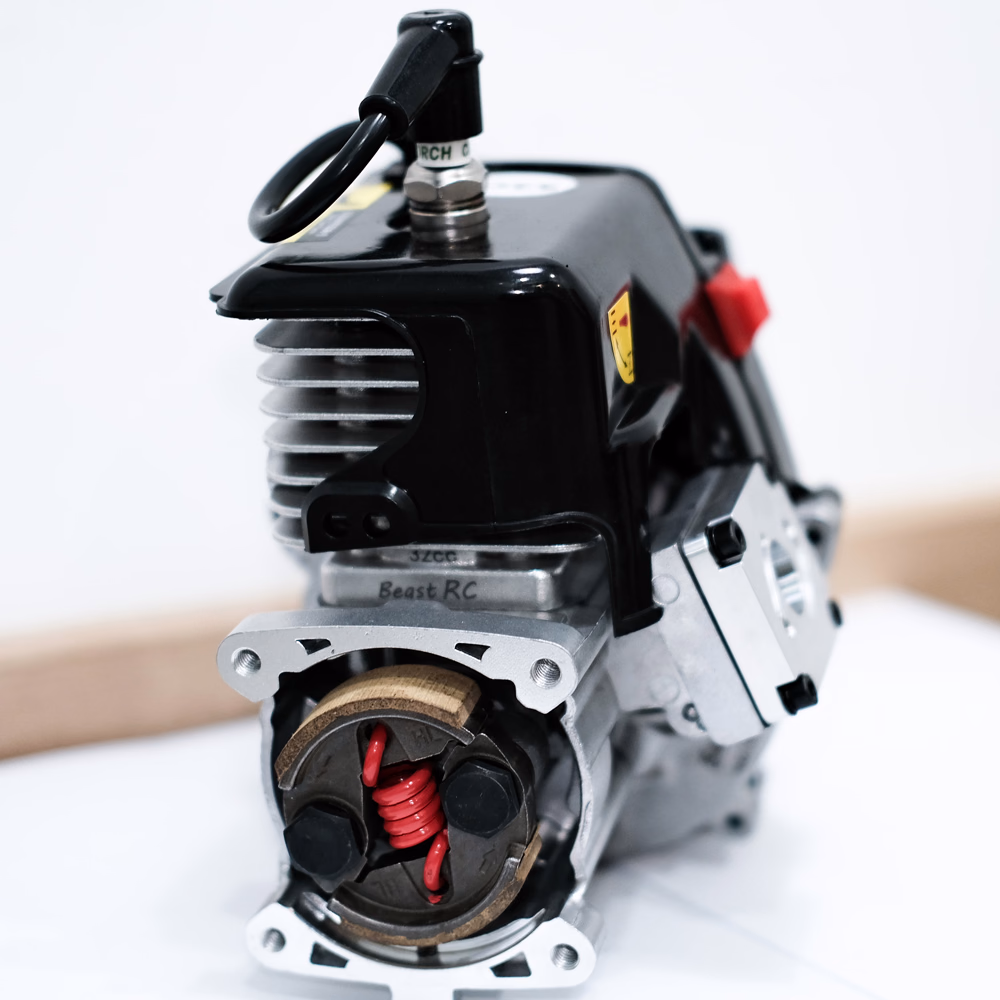

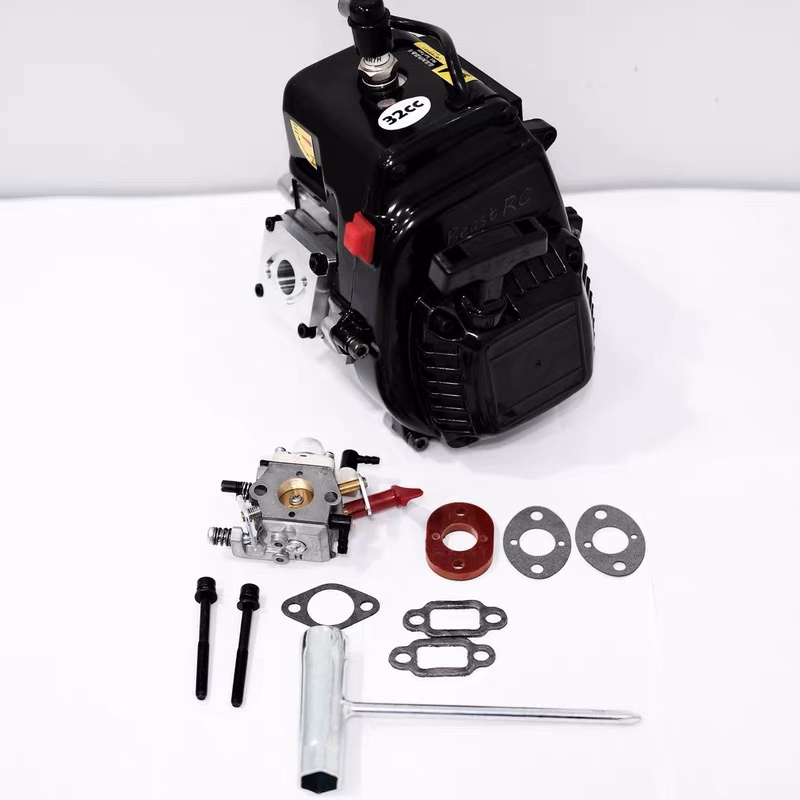

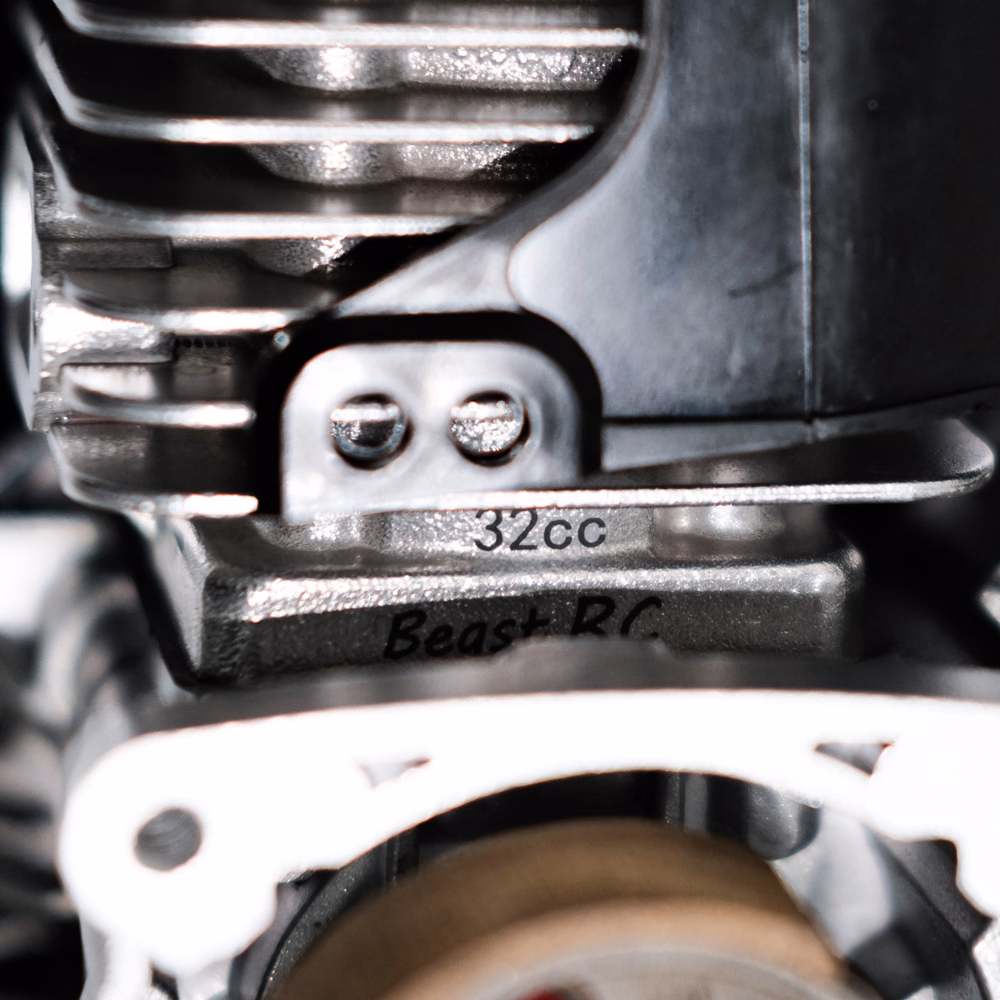

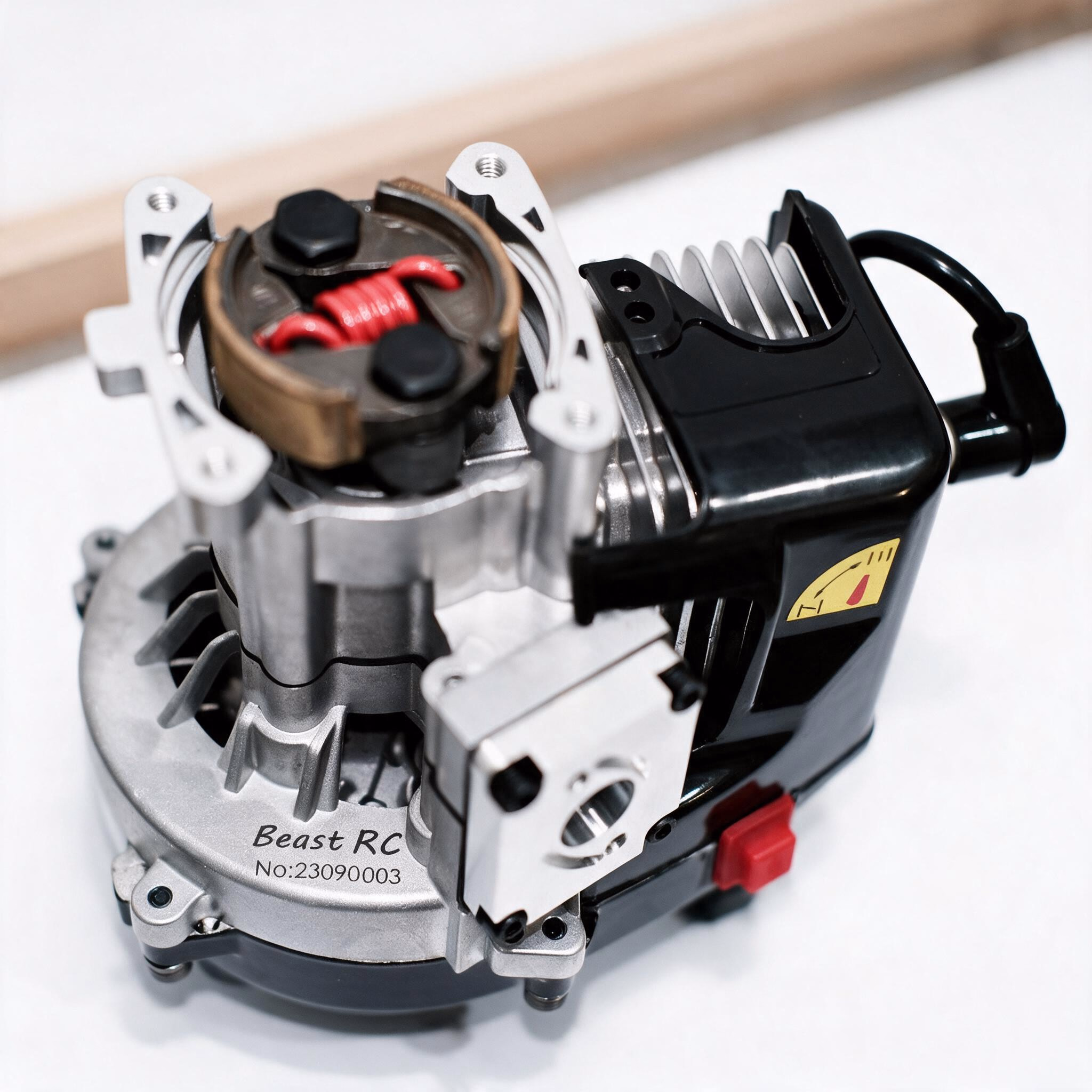

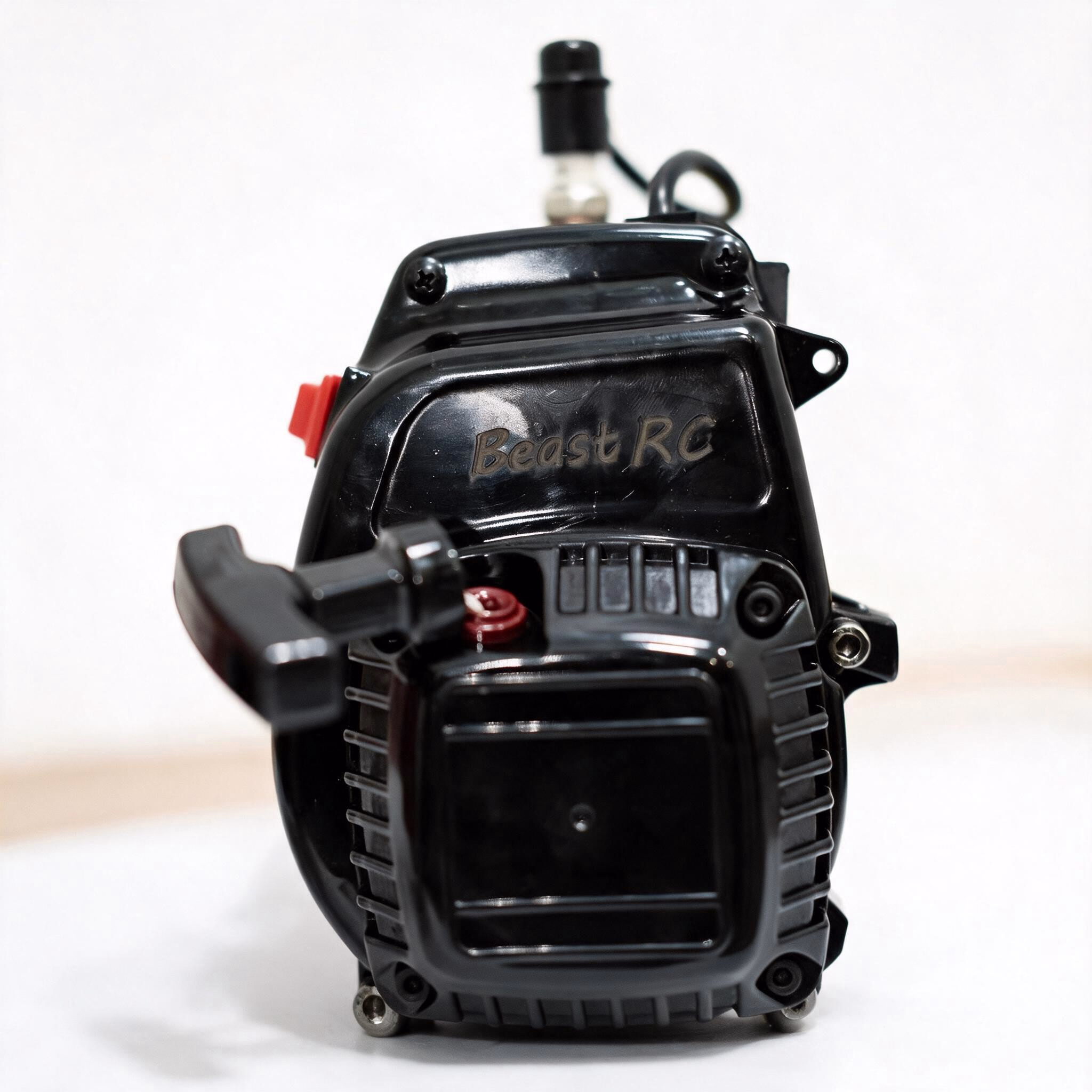

Beast RC 32cc High-Performance 2-Stroke Engine

Beast RC has invested countless hours into the development of this 32cc engine. Featuring an all-new platform with a 5-transfer port cylinder design, this engine delivers incredible performance. Experience zero thermal fade, even under the most intense driving conditions; the precision-machined cooling cylinder head effectively regulates engine temperature. The engine is also equipped with a 5-axis CNC-machined crankcase for superior precision. Paired with high-performance carbon fiber reed valves, this engine ensures razor-sharp throttle response. Custom crankcase color options are available for an additional fee.

Technical Specifications

• Engine Type: Single-cylinder, 2-stroke, air-cooled, piston-ported, reed valve induction.
• Bore × Stroke: 38mm × 28mm.
• Displacement: 31.7cc (Nominal 32cc).
• Crankshaft: 12mm standard splined shaft, 50mm length.
• Mounting Pattern: Standard 4-bolt Baja flange; 48mm horizontal, 52mm vertical hole spacing.
• Weight: Approx. 1400g (1.4kg) net; 2.3kg with packaging.
• Materials: Aluminum alloy cylinder/crankcase, chrome-plated cylinder, cast iron piston.

Performance Data

• Idle Speed: 4300–4700 rpm (Standard: 4500 rpm ±200).
• Clutch Engagement Speed: 8000 rpm.
• Max Torque: 1.98 N·m @ 9000 rpm.
• Max Power: 2.38kW (Approx. 3.24 HP) @ 13000 rpm.
• No-Load Max RPM: 20000 rpm.
• Compatible Vehicle Weight: 8–12kg 1/5 scale gasoline RC cars.
