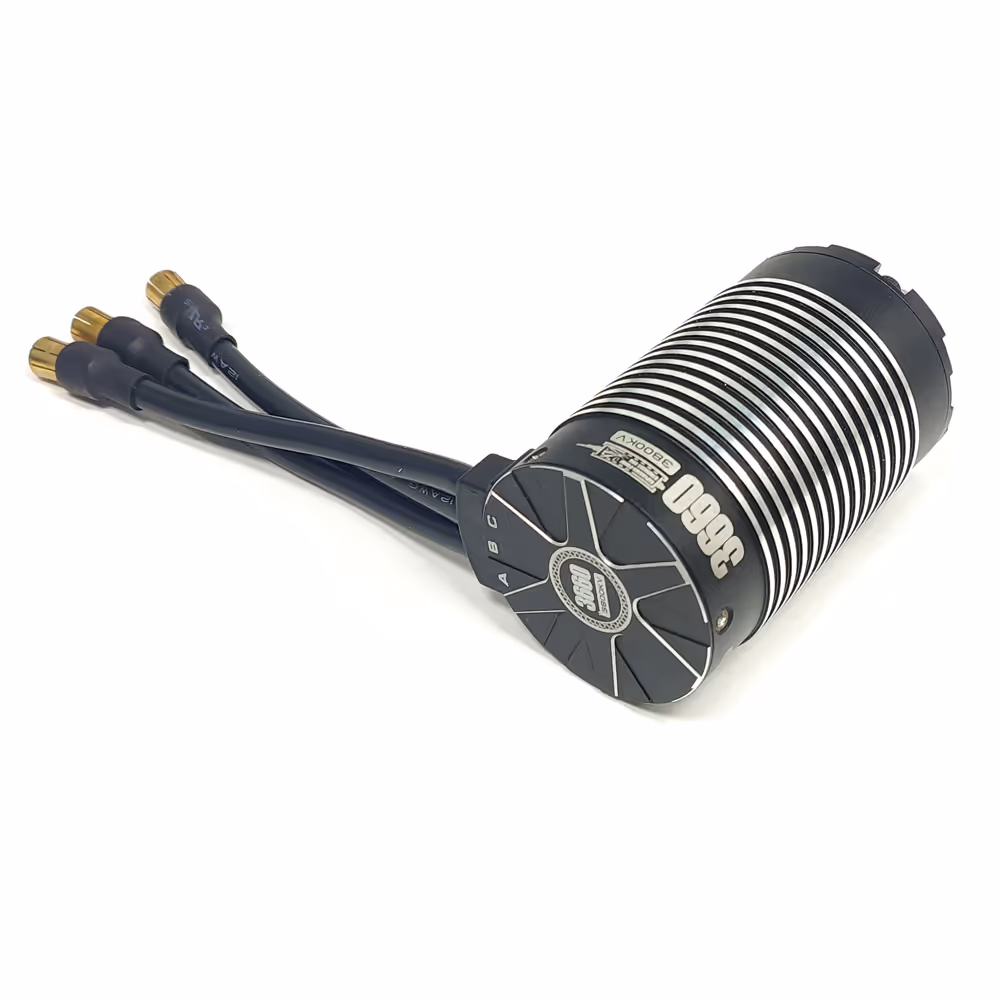

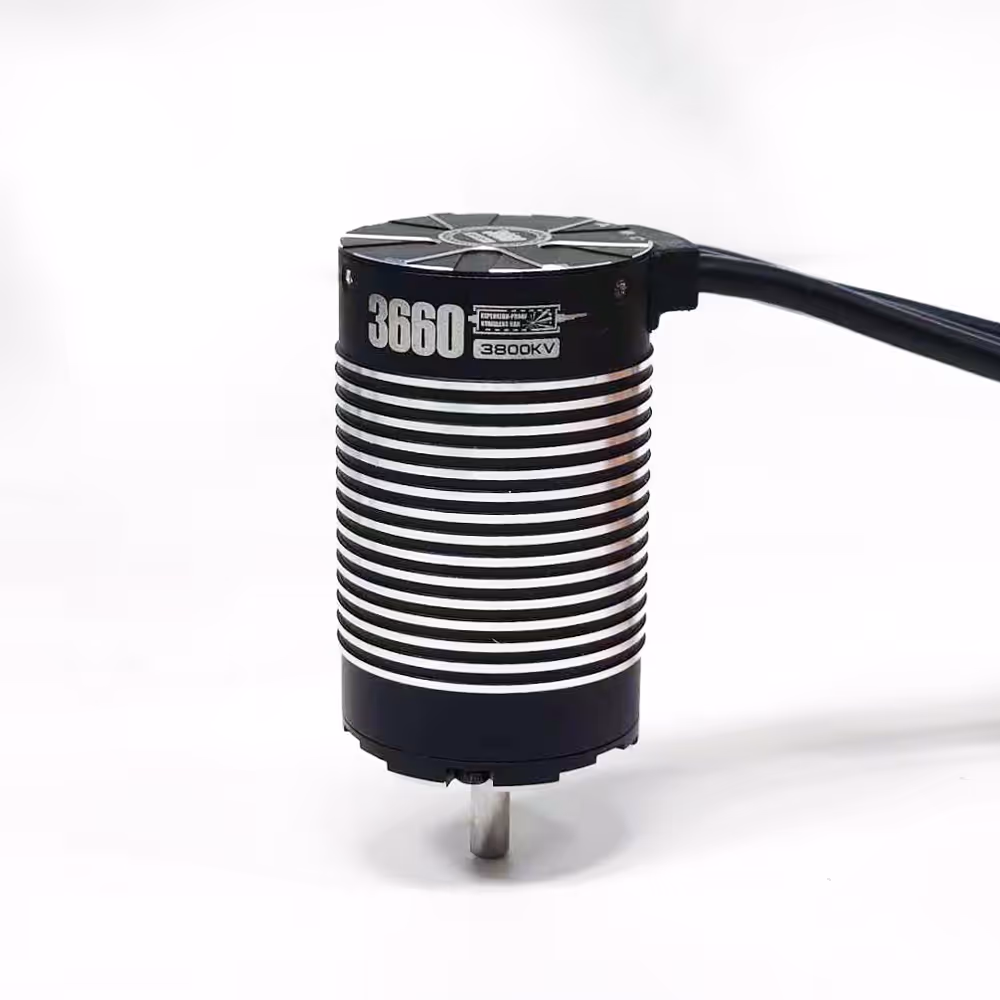

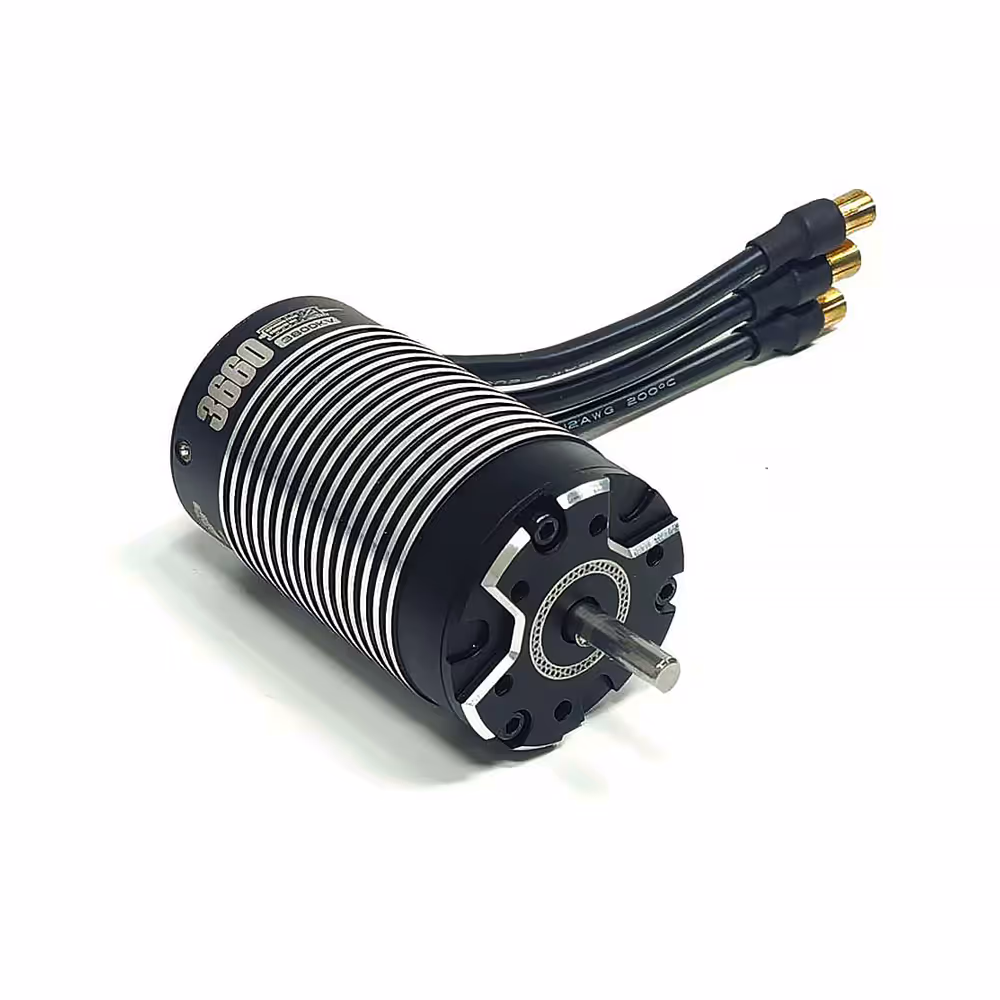

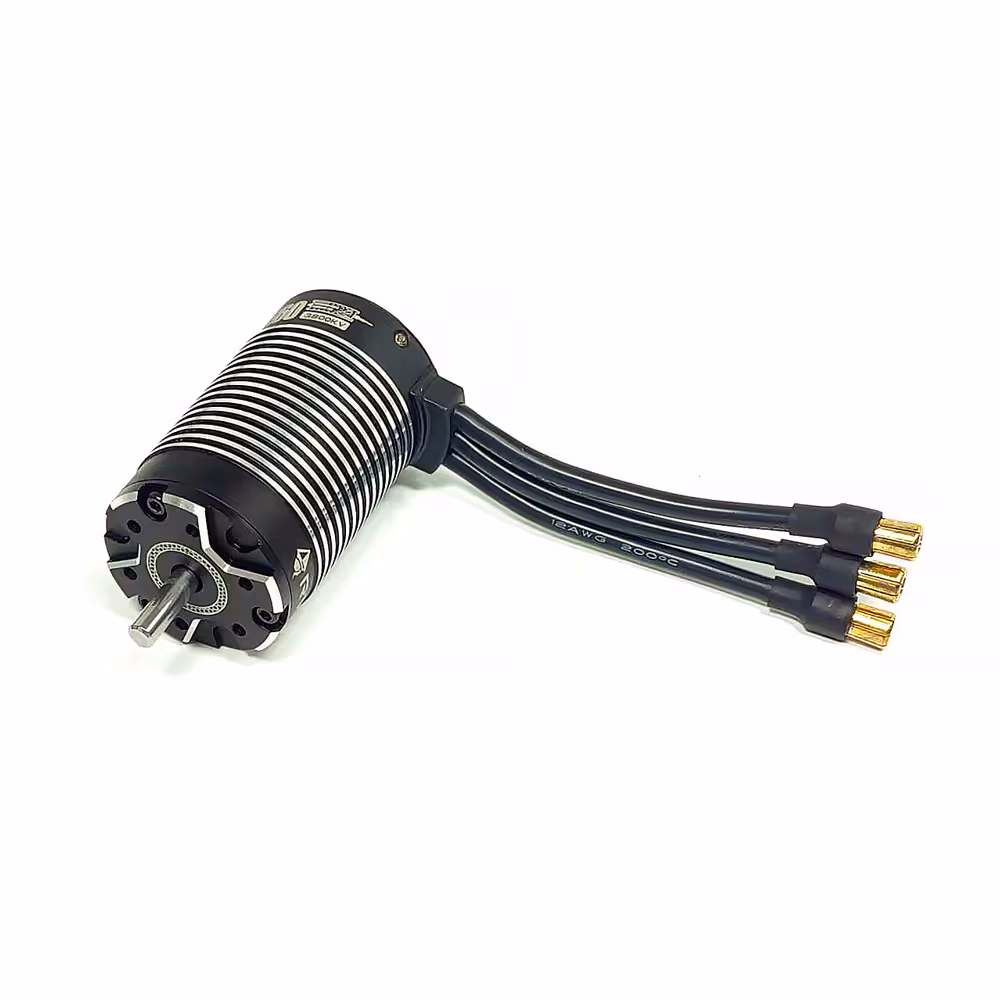

KKPIT RTS 3660 3800KV Brushless Motor Waterproof & Dustproof for 1/10 RC Cars

Experience superior power and durability with RTS 3660 3800KV Brushless Motor. Engineered with a high-strength CNC machined 6061-T6 aluminum heatsink can, this motor is built for peak performance and optimal heat dissipation, ensuring reliability even under extreme conditions.

The motor features high-purity copper windings to maximize efficiency and a precision-balanced rotor for smooth operation and a maximum RPM of 50,000. It provides an ideal blend of speed and torque, making it a perfect upgrade or replacement for all 1/10 scale brushless RC cars.

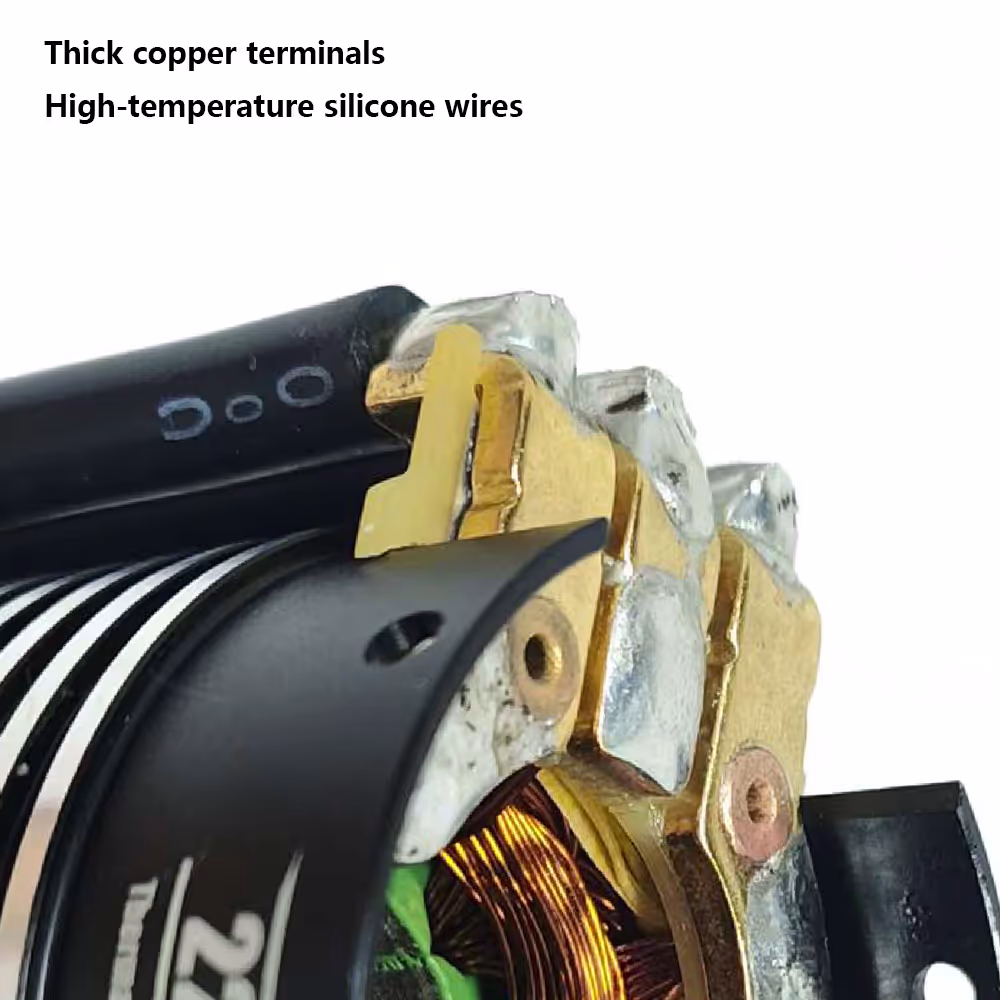

Designed to handle diverse environments, the RTS 3660 is waterproof and dustproof, allowing you to race through rain, mud, and sandy terrains without worry. Its robust construction, including a tough alloy output shaft and 4mm gold-plated connectors, guarantees long-lasting performance and maximum energy conversion.

Note: The waterproof and dustproof features are designed for normal use and are not permanent. Performance may decrease over time due to wear and aging. Do not submerge the product in water.

Key Features

• CNC Machined Aluminum Casing: Durable 6061-T6 aluminum provides excellent heat dissipation and protects internal components.

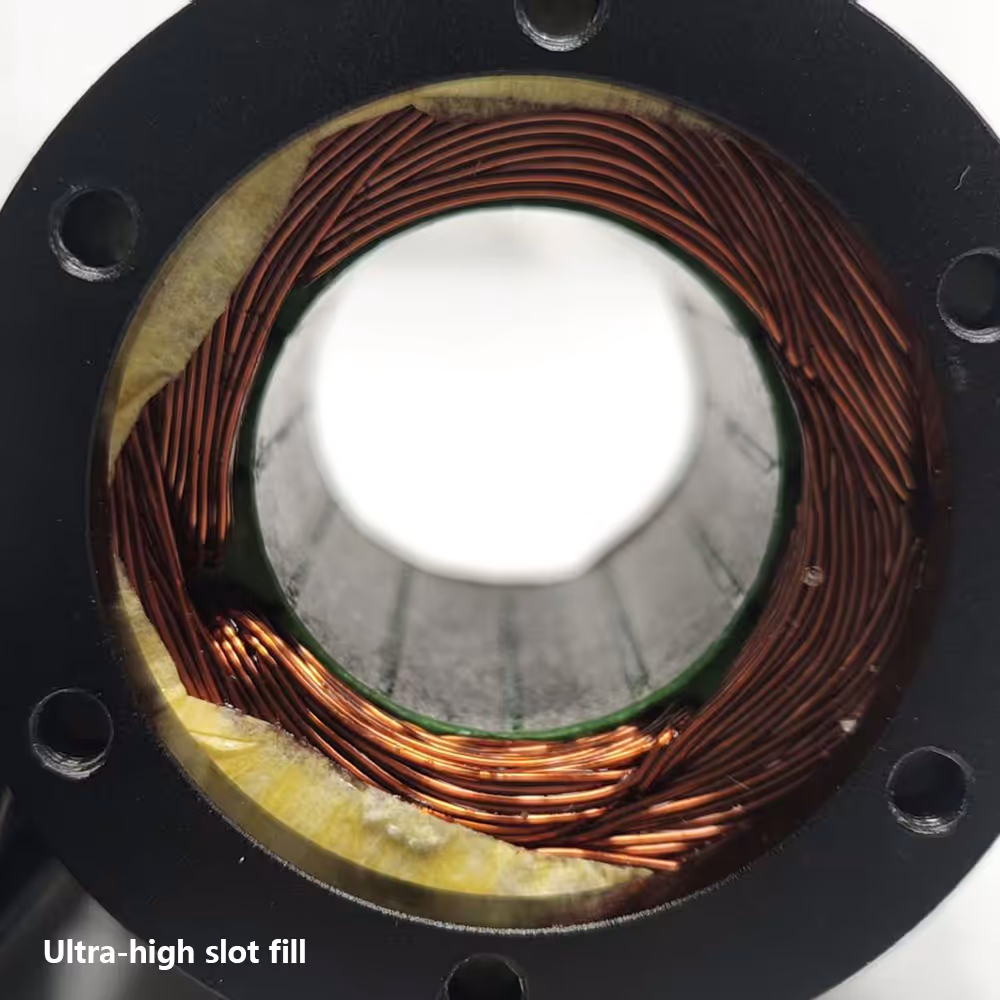

• High-Purity Copper Windings: Ensures maximum efficiency and high RPM for peak performance.

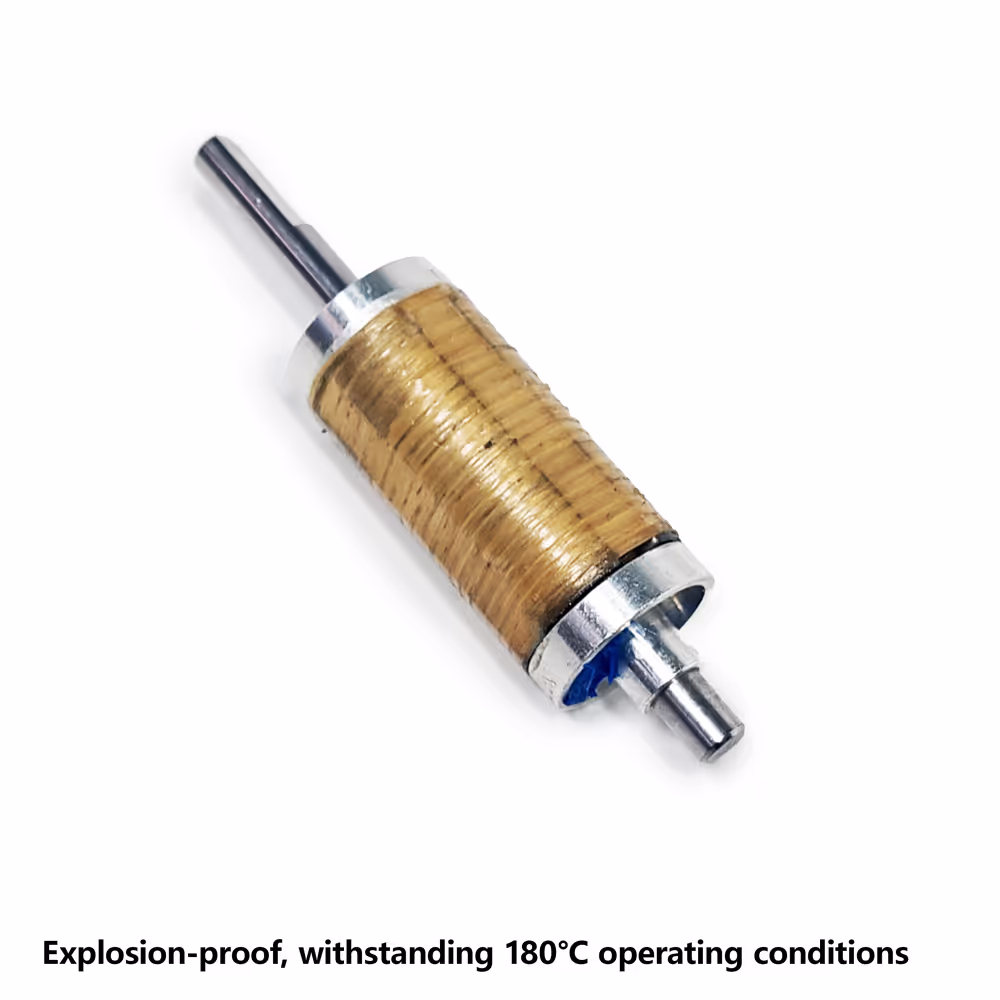

• Precision-Balanced Rotor: Delivers smooth and reliable operation, capable of reaching 50,000 RPM.
• Waterproof & Dustproof: Built to withstand splashes and debris, perfect for all-weather conditions.
• Universal Compatibility: Features a multi-mount system with M3 screws, fitting all 1/10 scale brushless cars.

Specifications

• Product Name: RTS 3660 3800KV
• Motor Type: Brushless, Sensorless
• Compatible Scale: 1/10
• Waterproof Rating: Splash-proof / Dustproof
• KV Value: 3800KV
• Max RPM: 50,000
• Rotor Poles: 4 (gild-plated)
• Shaft Diameter: 5mm / 0.2″
• Outer Shaft Length: 16.4mm / 0.65″
• Motor Diameter: 36mm / 1.42″
• Motor Length: 60mm / 2.36″ (minus shaft length)
• Weight: 226.5g / 0.5lb (with wires)
